Product information
- Name: HRC55
- Download Catalogue

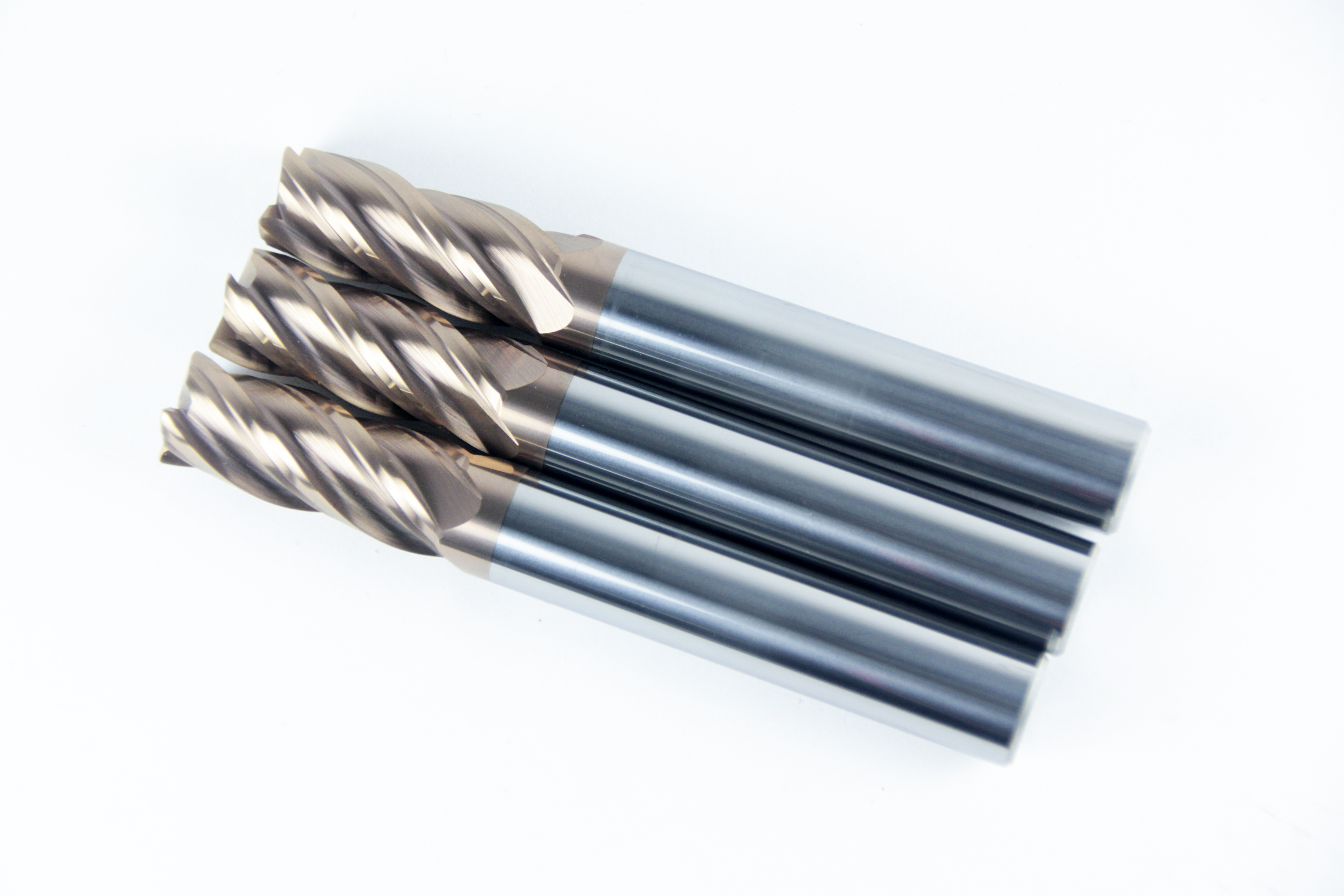

ADLER-55 4 Flute Corner Radius Endmill
WC=88 Co=12 HV30=1700 TRS Min=4000N/mm² HRA=91.8 Grain Size 0.6 µm
HRC | Dia(d) | Radius(R) | Total Length(L) | Cutting Length(l) | Shank Dia(D) | Flute(Z) |
55 | 2 | 0.2, 0.5 | 50 | 5 | 4 | 4 |
55 | 3 | 0.2, 0.5 | 50 | 8 | 4 | 4 |
55 | 4 | 0.2, 0.5 | 50 | 10 | 4 | 4 |
55 | 4 | 0.2, 0.5 | 75 | 12 | 4 | 4 |
55 | 5 | 0.5,1 | 50 | 13 | 6 | 4 |
55 | 6 | 0.5,1 | 50 | 15 | 6 | 4 |
55 | 6 | 0.5,1 | 75 | 18 | 6 | 4 |
55 | 6 | 0.5,1 | 100 | 18 | 6 | 4 |
55 | 8 | 0.5,1,1.5 | 60 | 20 | 8 | 4 |
55 | 8 | 0.5,1,1.5 | 100 | 24 | 8 | 4 |
55 | 10 | 0.5,1,1.5 | 75 | 25 | 10 | 4 |
55 | 10 | 0.5,1,1.5 | 100 | 30 | 10 | 4 |
55 | 12 | 0.5,1,1.5 | 75 | 30 | 12 | 4 |
55 | 12 | 0.5,1,1.5 | 100 | 36 | 12 | 4 |
